REA VeriCube DPM

The REA VeriCube DPM is a universal, stationary verification system designed for the verification of 2D-Matrixcodes. An outstanding feature of this system is the integrated DOME illumination, which enables directly marked codes on high-gloss and highly reflective surfaces to be verified reproducibly and reliably. This is achieved by a matt white tube in the measuring chamber of the code inspection system, which provides extremely diffuse lighting.

Regardless of the geometry of the test object, even with complex 3D shapes, shadows are avoided and extraneous light influences are eliminated, leading to reliable test results. The device therefore guarantees consistent measurement results, regardless of the shape of the object to be tested.

The REA VeriCube DPM uses the DPM (Direct Part Marking) test method according to ISO/IEC TR 29158 to determine the marking quality of the direct marking. This makes it possible to optimize and maintain the print quality of the code. In the application, such high-quality codes are read reliably and with a very high first-pass reading rate.

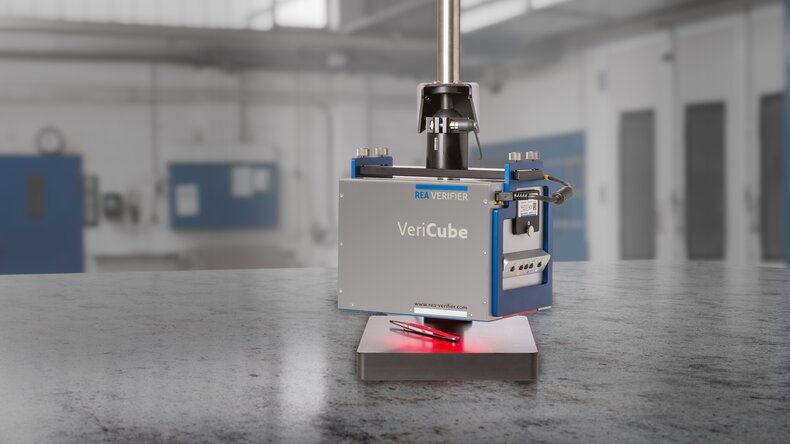

The verification system can be used in three different positions: sideways, upright facing upwards and upright facing downwards. It also has a replaceable, scratch-resistant real glass pane and offers selectable illumination options in red light and white light to meet a wide range of inspection requirements.

The REA VeriCube DPM, with its dome-shaped, highly diffuse illumination, is ideal for inspecting and verifying codes on high-gloss and highly reflective surfaces. Here are some specific applications for which the REA VeriCube DPM is ideal:

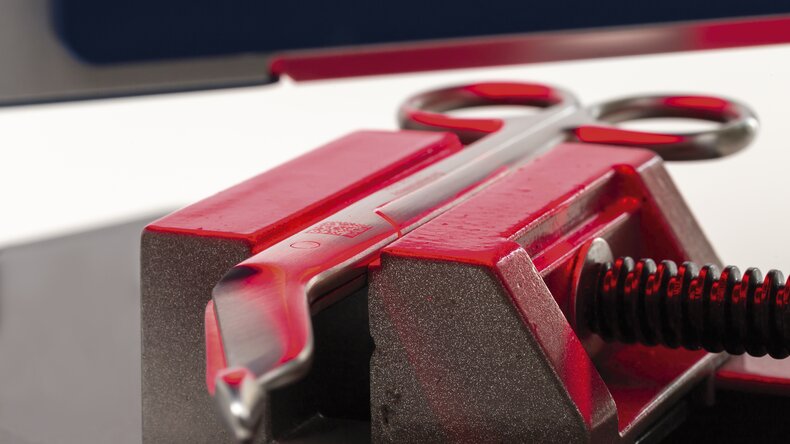

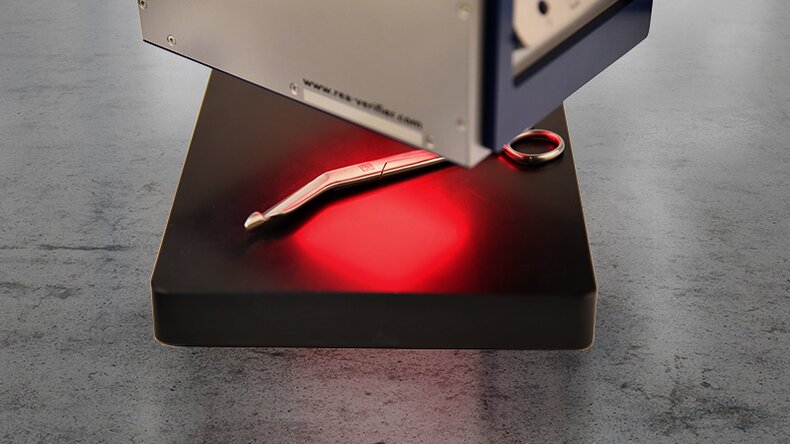

These features make it a versatile tool in a variety of industries. In the medical device sector, the VeriCube DPM is used in the quality control of surgical instruments and other high-precision instruments where error-free marking is essential and possibly life-saving.

The VeriCube DPM is also indispensable in the automotive sector . Here it is used for the inspection of parts with shiny or chrome-plated surfaces to ensure that all required markings, such as serial numbers or test certificates, are correct and clearly readable.

In the electronics sector , the VeriCube DPM supports the verification of components and assemblies with shiny surfaces, such as housings or circuit boards, by ensuring that all markings can be captured correctly and without distortion.

The REA VeriCube DPM is an advanced contact-free code verification system designed especially for use in demanding production and quality control environments. With its comprehensive range of features, the REA VeriCube DPM sets new standards in the inspection and analysis of codes.

• DOME illumination: The integrated DOME illumination ensures optimum illumination of the codes and thus enables precise and reliable measurement. The diffuse light distribution ensures uniform illumination, which is particularly advantageous for difficult surfaces.
• Contact-free code verification with CMOS camera system: The system works with an advanced CMOS camera system that enables contact-free code verification. This technology ensures high resolution and accuracy when capturing and analyzing codes.
• Different focus positions: With focus positions of 0, +15 mm and +25 mm above the glass pane, it is possible to measure parts where the code cannot be placed directly on the pane. This flexibility considerably expands the application possibilities of the system.
• Selectable illumination types: The REA VeriCube DPM offers the option of choosing between red or white light illumination. This function enables optimum adaptation to the respective inspection requirements and thus ensures high inspection quality.
• Measurement of directly marked codes (DPM): The system is able to measure and analyze directly marked codes (DPM). This makes the REA VeriCube DPM an indispensable tool for quality control in production processes where direct marking is used.
• Flexibility in application: The REA VeriCube DPM can be used in three positions: sideways, upright facing upwards or upright facing downwards. For complex 3D geometries, the system can also be placed in a stand, which further expands the range of applications.
• Matt white tube insert: A matt white tube insert in the measuring chamber ensures extremely diffuse illumination, resulting in very uniform lighting conditions and therefore precise measurement results.
• Compliance with international test standards: The REA VeriCube DPM performs inspections in accordance with the ISO/IEC 29158 standard (directly marked matrix codes, DPM test method). In addition, the system can incorporate the requirements of user specifications such as the GS1 specifications and verify the correct data structure (ISO/IEC 15459-x series of standards, ISO/IEC 15418/ANSI MH10.8.2, ISO/IEC 15434 etc.).
