Up to 4
Spray mark heads
Up to 4
Colors at the same time
IP 54
Protecion class
REA JET STF
Flexible turnkey system
The REA JET STF Turnkey System stands out due to its particularly flexible application options. It is suitable for medium to large marking tasks and can be integrated into the production environment immediately.
Why spray mark technolgie for dot peen and line markings?

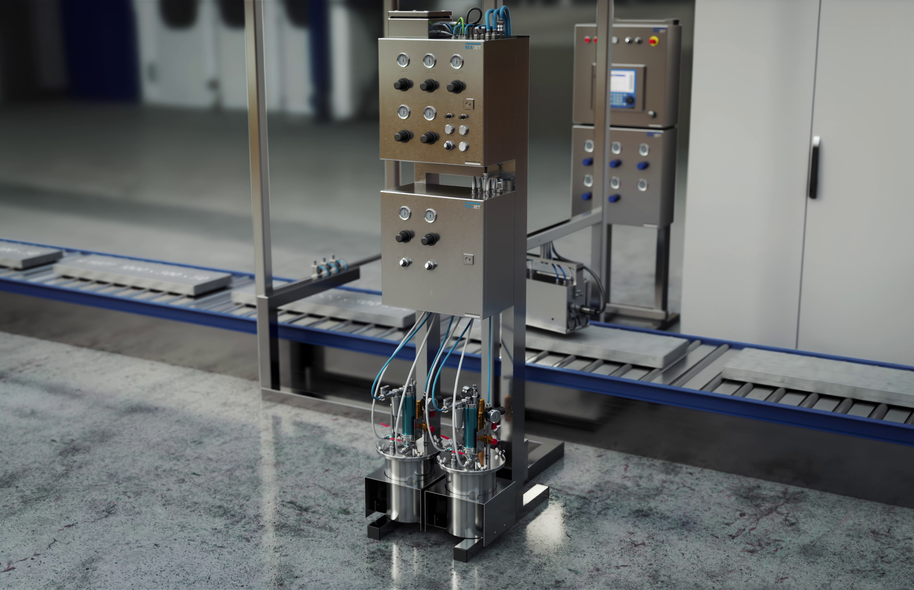

The flexible complete spray mark system STF
The REA JET STF system (flexible marking technology system) stands out due to its particularly flexible application options. It is suitable for medium to large marking tasks and can be integrated immediately into the production environment.

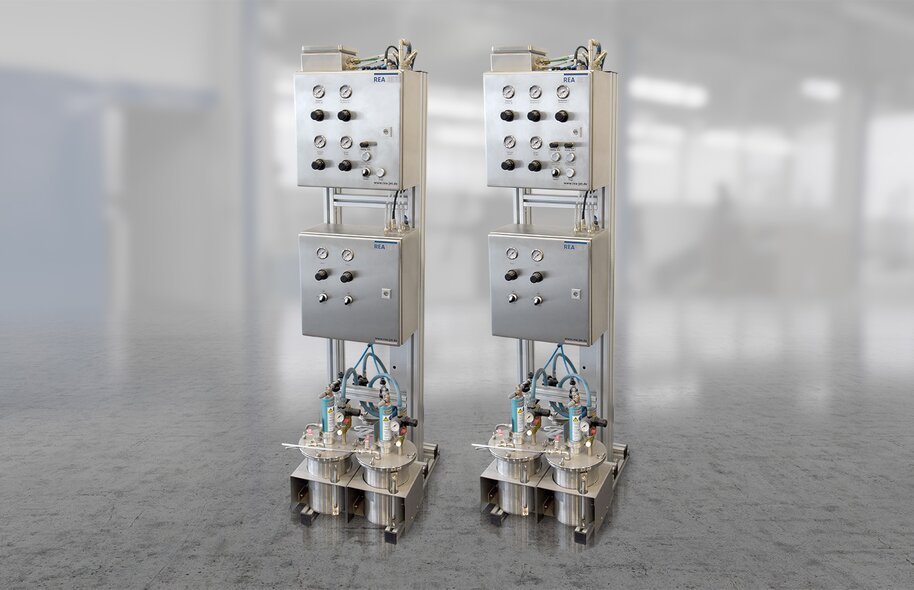

The modular system technology can be individually expanded and adapted. The stainless steel control cabinet complies with IP54 protecion class and is designed for marking and coding with splashable media.

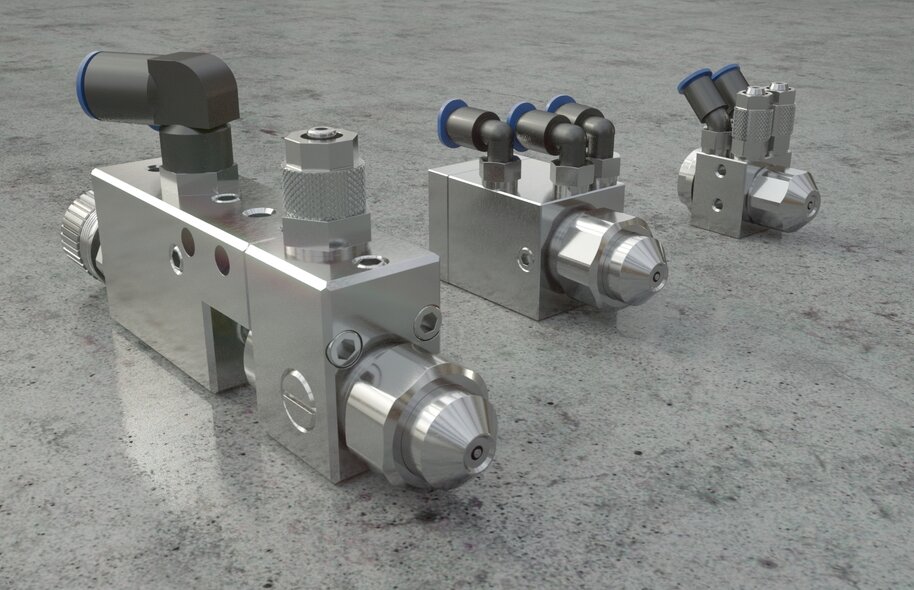

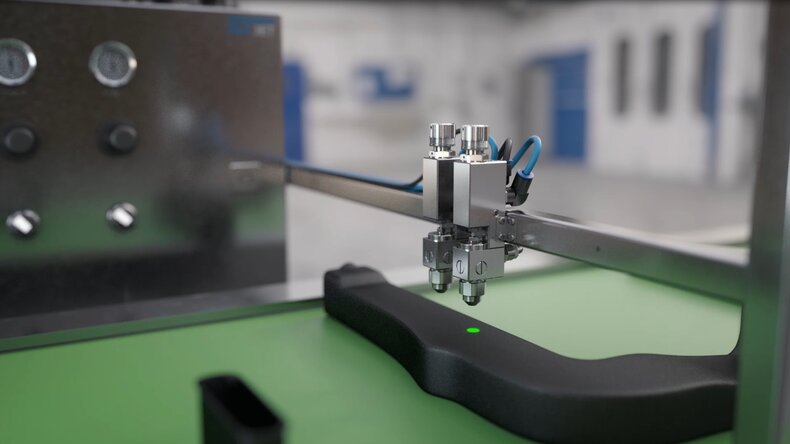

Depending on the version, 1 to 4 spray mark heads can be controlled and up to 4 different colors can be processed simultaneously to apply position, dot and line markings.
The system is designed for manual and automatic operation. The functions for a spray mark head flushing system are pre-installed. The use of a REA JET flushing box ensures good re-spraying behavior even after a long standstill.
With an optional circulation pump and a cyclically controlled agitator, the sprayable medium is circulated through the spray mark heads and the ink is kept in motion so that no pigments can settle.
1
/ 3
Product line video
Versatile. Rich in contrast. High resolution.
Please activate the necessary cookies here to be able to watch this video.
Applications
The right solution for every customer application

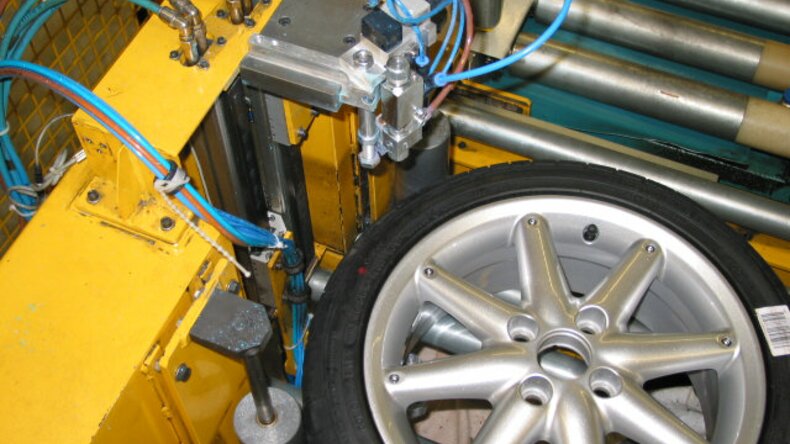

Our REA JET STF is suitable for versatile applications in industrial coding and marking. Here are some examples of areas of application:
- Designed for series production of medium and larger batch sizes

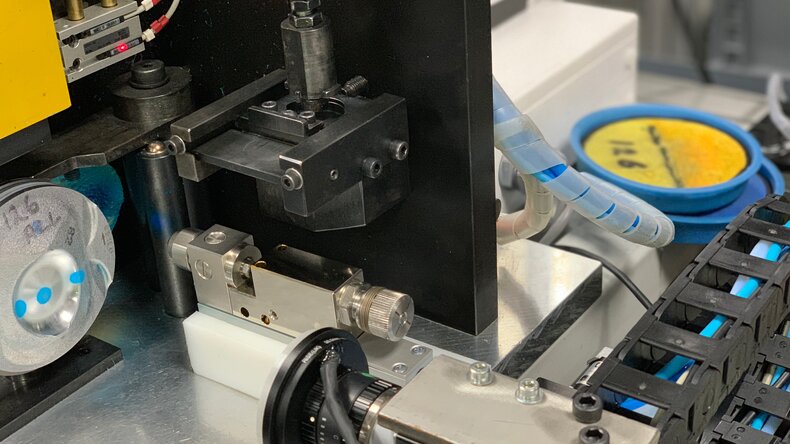

- Marking products as good or bad for quality assurance, either by camera systems or manually by personnel

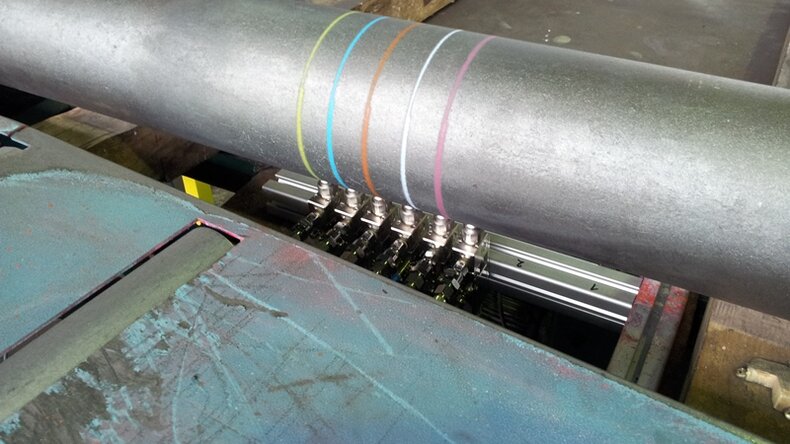

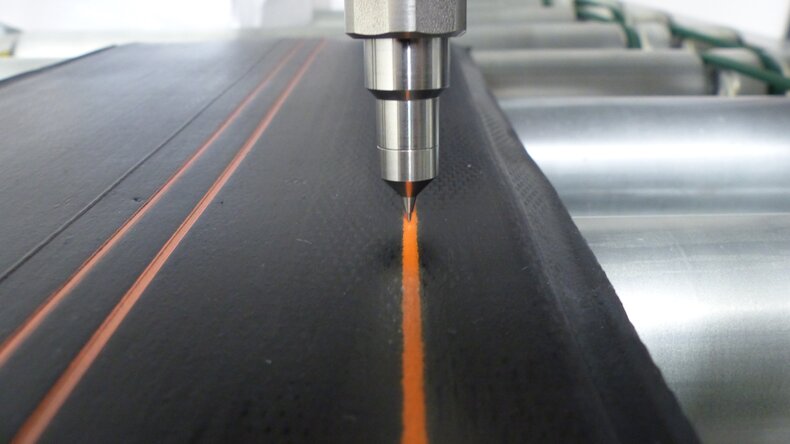

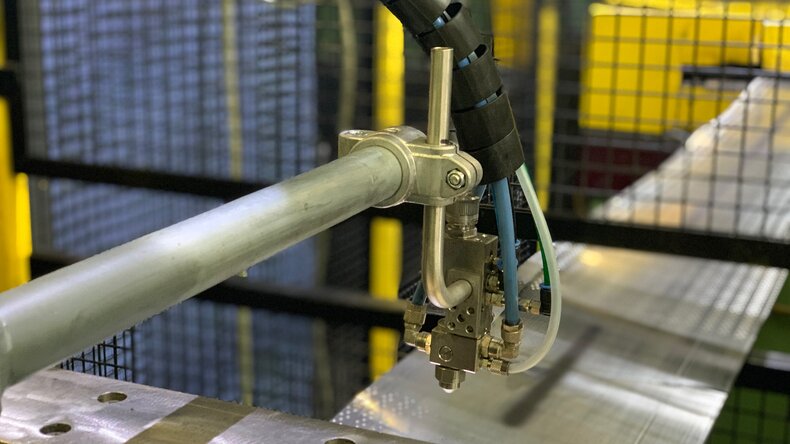

- Line marking for continuously produced materials such as pipes and profiles

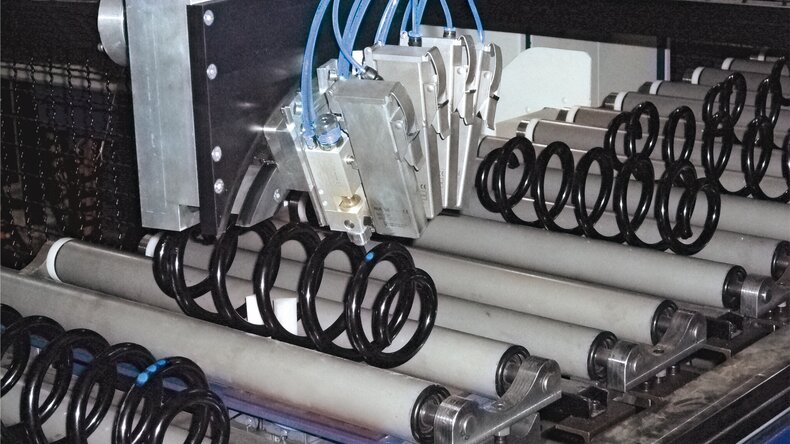

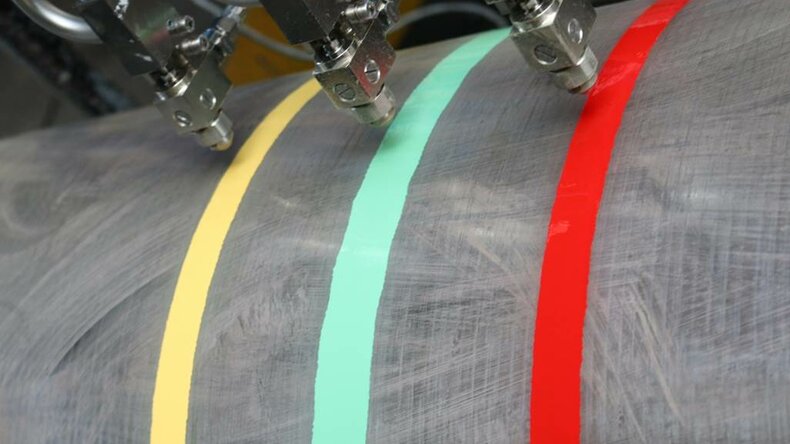

- Multi-colored dot and line marking to differentiate between different types
- Application of oils, release agents, soaps and process water
- Marking of weld seams in metal profile production
- Application of fragrances to cosmetic samples
- Machine-recognizable line markings for precise edge trimming
- Application of markings for positioning, bending, position and cutting guide
- Precise application of coolants, cutting agents and lubricants
- Application of flux for automatic soldering processes (flux)
- Sealing with protective lacquer in PCB production
- Precise application of adhesives or screw locking solutions
The system
Get to know the system
1 / 3
Everything at a glance
Examples of marking, marking and pre-treatment
Discover the numerous possible applications of our high-performance REA JET STF coding and marking systems, which you can use to ensure quality markings in your industry.
Downloads
Informational material
REA JET ST
Suitable for precision line and dot marking as well as surface application of a wide variety of high and low-viscosity media.
Components
Software, consumables and accessories
Software
REA JET Label Creator
Software
With the REA JET Label Creator, labels and print layouts can be created fast and easily for the various REA JET Coding and Marking Systems. Individual objects can be freely positioned and individually parameterized.
Consumables
ST marking inks removable
Consumables
Colors for short-term marking. Removable with water or alkaline solutions.
ST Marking inks resistant to high temperatures
Consumables
Temperature resistant up to 1400 C°.
