REA VeriCube

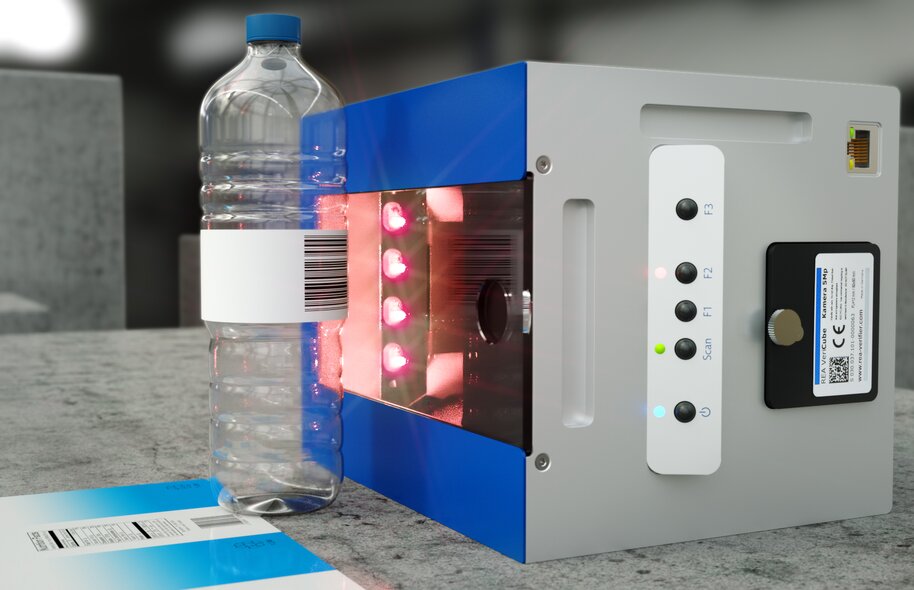

The REA VeriCube is a highly developed and modern matrix and barcode verification system that can be used flexibly and in a variety of ways across all industries. Thanks to its sophisticated design, it enables the measurement of almost any type of test sample, whether lying down, standing up or from top to bottom - everything is contact-free and in the optimum position. The contact-free code verification is carried out using an innovative CMOS camera system.

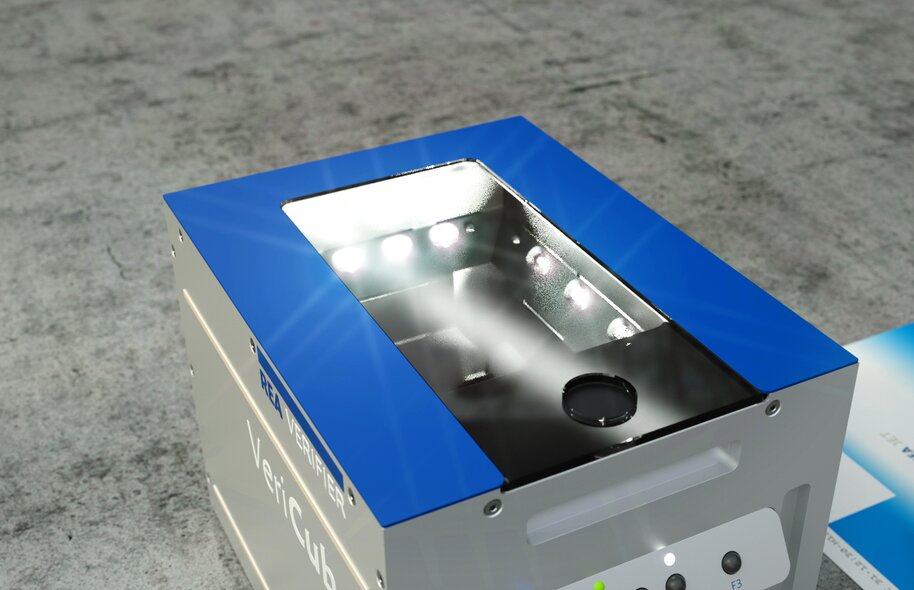

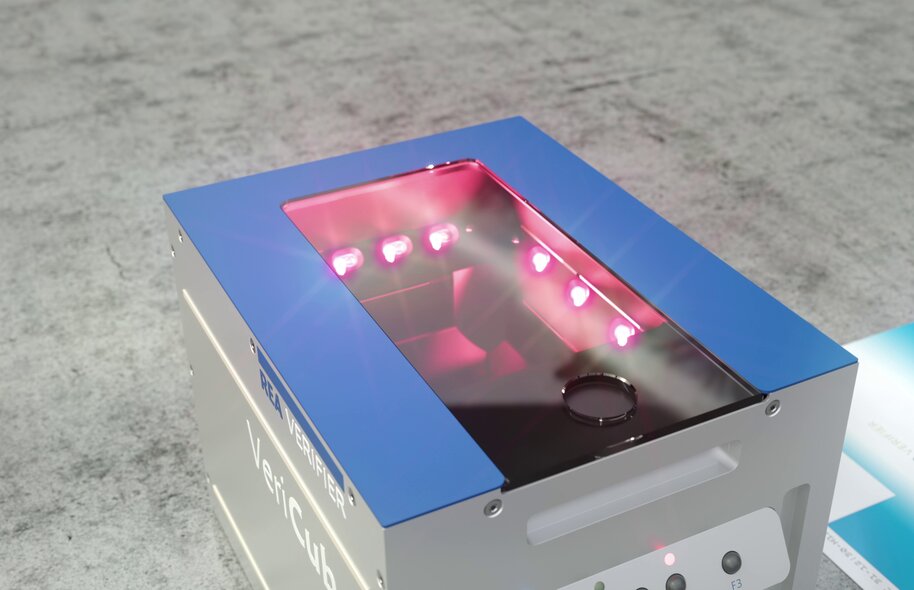

Several different types of lighting are available, including red or white light. This selection of lighting types makes it possible to verify different code types and surfaces under ideal conditions. Thanks to the interchangeable optical modules, the system can be optimally adjusted to codes of different sizes to ensure the best possible measurement accuracy at all times.

Optical codes are measured in the VeriCube in compliance with defined angles, distances and illuminations and in accordance with ISO standards (ISO/IEC 15415, ISO/IEC 15416). This ensures accurate and repeatable measurement results and quality assessments, which are essential for improving the read rates of the tested codes in your particular application.

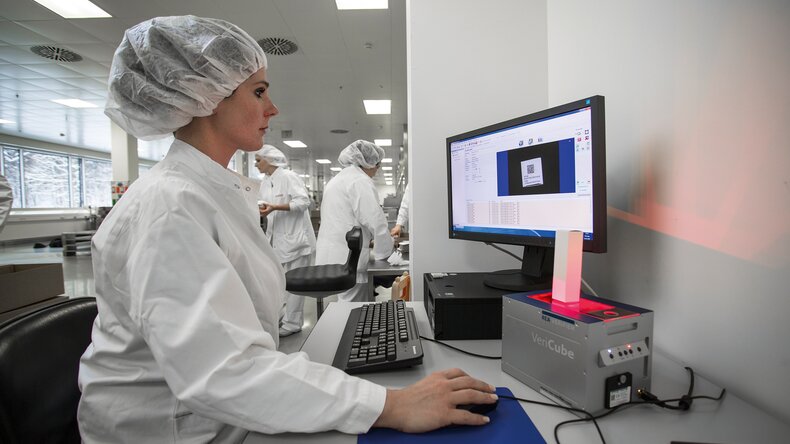

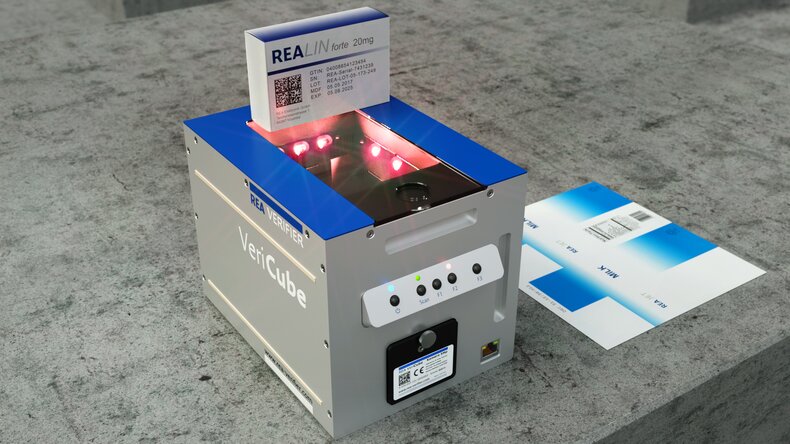

Our REA VeriCube offers a comprehensive range of services to meet the requirements of a wide variety of industries, from packaging and logistics to the pharmaceutical and automotive sectors.

• Barcode verification: The VeriCube verifies linear barcodes according to international standards such as ISO/IEC 15416, which ensure that barcodes are reliably readable under various conditions by evaluating criteria such as contrast, modulation and freedom from errors.

• Data Matrix code verification: In addition to linear barcodes, the VeriCube can also verify two-dimensional codes such as the Data Matrix code, QR code or Aztec code. Verification is carried out in accordance with ISO/IEC 15415 or ISO/IEC 29158 and test aspects include dimensional accuracy, contrast and reflection evaluations and code properties such as code size, bright fields, data structures, etc. The quality of the print results can thus be optimized and perfect and reliable readability/first-pass reading rates are ensured. The code types (or symbologies) are also specified by ISO/IEC standards. These standard specifications are part of the inspection.

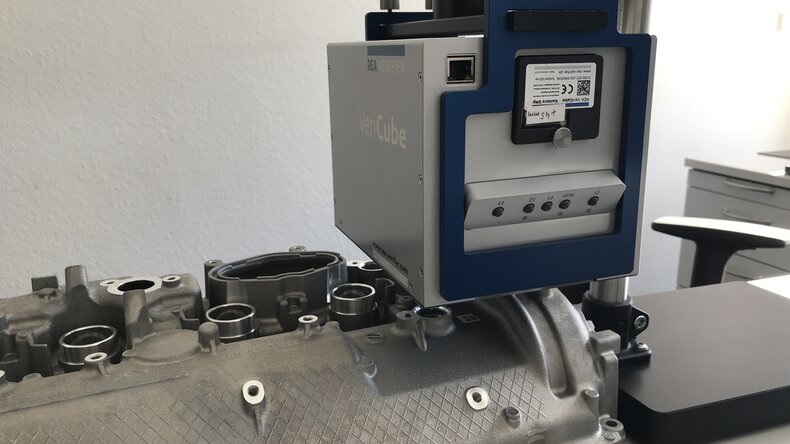

• User specifications: Barcode and 2D matrix code testing always includes user specifications such as for the retail and pharmaceutical industries (GS1 General Specifications, GS1 Digital Link). Furthermore, in the automotive sector de VDA, ODETTE and AIAG requirements (VDA 5510, VDA 4994, Odette Global Transportlabel). Medical products UDI, military (MIL-STD-130N, Bundeswehr AIT) are further applications.

• Versatility in application: The VeriCube is flexible in use and can verify different code sizes and types. This makes it a universal tool in the quality assurance of printed codes, labels and packaging.

• Precise and repeatable measurements: Thanks to state-of-the-art technology, the VeriCube delivers highly accurate and repeatable results. This is particularly important for manufacturers who have to ensure that their codes can be read correctly throughout the supply chain.
• Intuitive software: The REA TransWin32 software supplied with the VeriCube is user-friendly and easy to operate. It offers extensive analysis and reporting options, allowing users to obtain detailed information on code quality and identify areas for improvement.
• Compact design: The VeriCube is compact and robust, making it ideal for use in a variety of environments. Despite its small size, it offers high performance capability and reliability.
• Conformity with industry standards: The VeriCube complies with all relevant industry standards and norms, making it a reliable solution for companies that have to meet strict quality requirements.
