REA JET EDS
Injection system
The injection systems (EDS) are particularly suitable for very small dot and line markings. The dot size is set by selecting the nozzle size, different material pressure and continuous adjustment on the controller.
The REA JET One Dot System (REA JET EDS) is an innovative and versatile marking system designed for precise dot and line marking. This compact system is ideal for use with various inks, paints and varnishes.
A key feature of the REA JET EDS is its ability to apply the same amount of medium with precise accuracy. This ensures consistent and high-quality marking on different surfaces. The system can also be used for pre-treatment of surfaces, further emphasizing its versatility.
There are two main variants of the system:

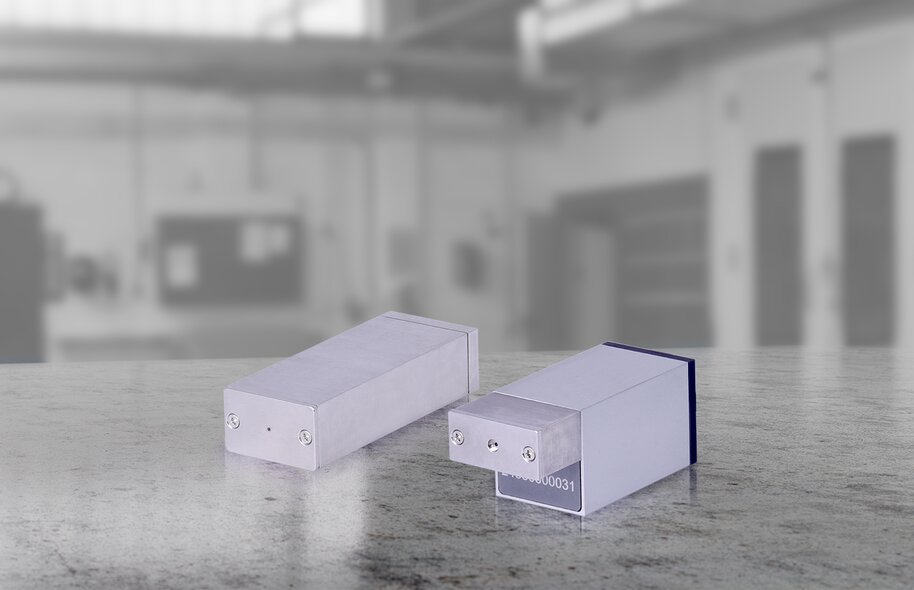

- REA JET EDS: Especially suitable for dot marking, even with pigmented inks.
- REA JET EDS II: A robust heavy-duty version with IP65 protecion class for more demanding environments.

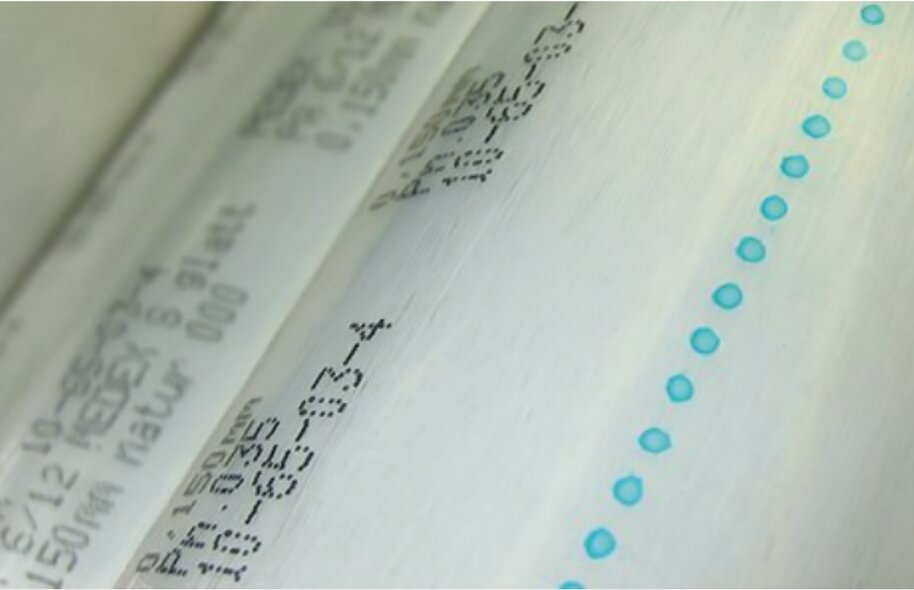

The system offers impressive precision with fine dot and line markings in thicknesses from 0.2 to 3 mm. To meet different application needs, nozzle sizes of 80, 130, 270, 350 and 500 µm are available, allowing for different drop sizes.

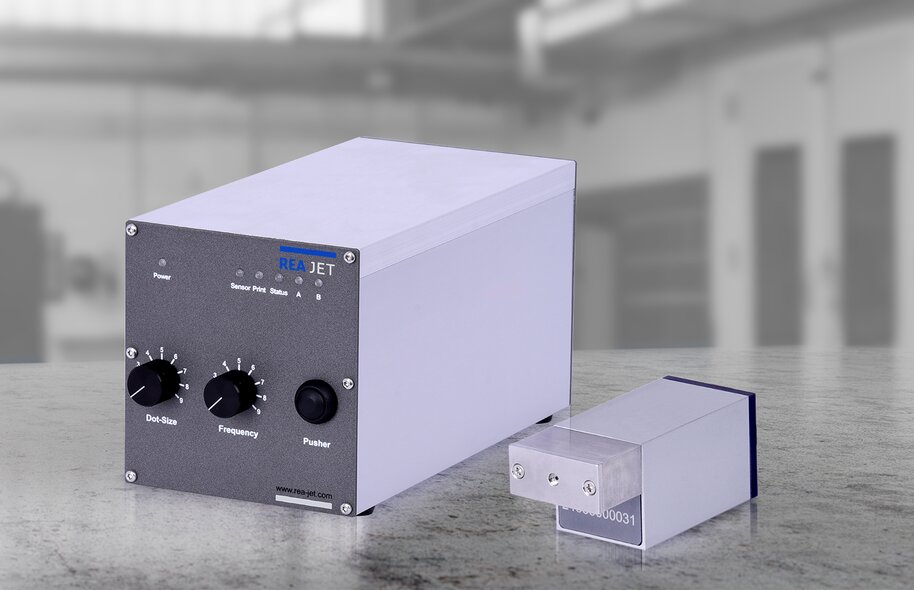

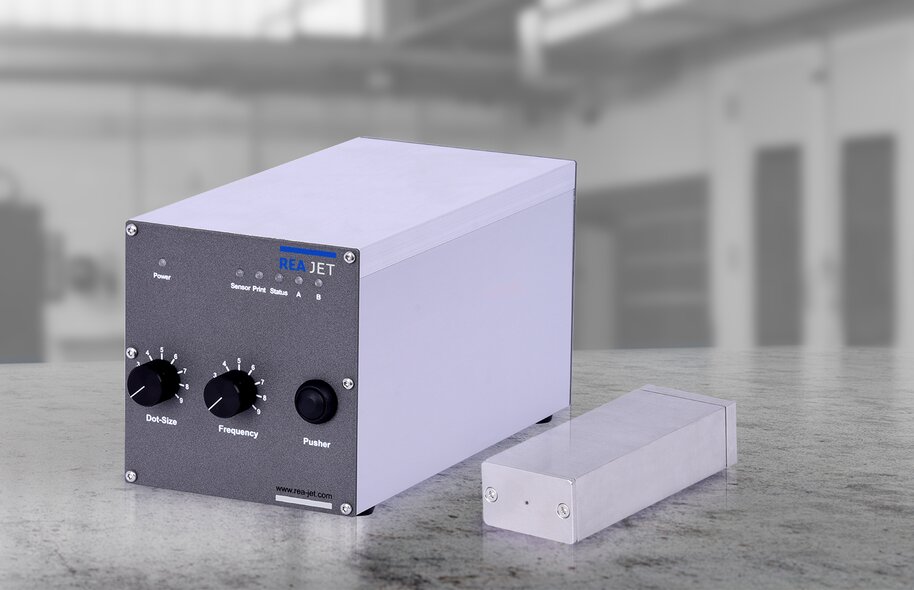

The system is controlled by the REA JET EDC, a compact marking system for dot and line marking. The EDC controller can be used to control up to two REA JET EDS single-nozzle print heads, further increasing the flexibility and efficiency of the system.
Overall, the REA JET One Dot System offers a precise, versatile and reliable solution for a wide range of marking requirements in industrial environments.
Our REA JET One Dot System is suitable for versatile applications in industrial coding and marking. Here are some examples of applications:
- Good/bad marking of products for quality assurance; camera recognition or personnel
- Line marking for e.g. pipes, profiles and endless goods
- Multi-colored dot and line marking for type differentiation
- Application of oils, release agents, soaps and process water
- Weld seam marking in the production of metal profiles
- Applying fragrances to cosmetic samples
- Machine-recognizable line markings for edge trimming
- Application of position and location, bending and cutting markings
- Targeted application of coolants, cutting agents and lubricants
- Application of flux for automatic soldering processes (flux)
- Application of oils, release agents, soaps and process water
Technology for quality marks, aid lines and pre-treatment in production and assembly
Suitable for precision line and dot marking as well as surface application of a wide variety of high and low-viscosity media.
Software
With the REA JET Label Creator, labels and print layouts can be created fast and easily for the various REA JET Coding and Marking Systems. Individual objects can be freely positioned and individually parameterized.
Consumables
Non-visible ink that only fluoresces blue at a certain wavelength and makes the printed image visible. Ideal for absorbent and non-absorbent surfaces with a drying time of 3 seconds.
Consumables
Food-approved ink for direct food labeling with food contact certification and a very short drying time of 3 seconds. Available in different colors.
Consumables
Quick-drying inks for permanent and brilliant marking. These are ideal for a wide range of non-absorbent surfaces.
Consumables
Ink can penetrate oil and grease films on sheet metal and forms clearly readable, durable markings. Excellent adhesion to metals due to chemical complex formation. Water, alkali and oil resistant. Very good resistance to light and chemicals.
Consumables
Pigmented inks fast drying time. Very good adhesion and good contrast
Consumables
Quick-drying inks for permanent and brilliant marking. These are ideal for a wide range of absorbent surfaces.
Consumables
Quick-drying inks for permanent and brilliant marking. These are ideal for a wide range of surfaces - absorbent or non-absorbent - and applications with the shortest drying time. Available in different colors.
Consumables
Heat-resistant inks above 1200 C° that withstand extreme temperatures without evaporating or losing their color and adhesion.
Consumables
Waterproof inks are designed to be water-resistant after drying. These are particularly suitable for absorbent surfaces. Available in different colors.
Consumables
Water-soluble inks are environmentally friendly, easy to clean and dry fast. They also offer the advantage of low emissions of volatile organic compounds (VOCs).
The REA JET One Dot System (EDS) from the REA JET mark technolgie product line is an innovative solution for precise dot and line marking. Especially developed for demanding applications, the system offers a wide range of functions and applications that make it an indispensable tool in industrial coding and marking.
